技嘉ITX主板H110TN-E一体机工控迷你主机主板DP/4K高清i3-8100

ꄴ上一个： 迷你工控主板Z8350四核nano工控主机2g/32g蓝牙WiFi无风扇linux
ꄲ下一个： 研域微型主板Nano ITX四核小主板B835/z8350无风扇wifi/Z3735F

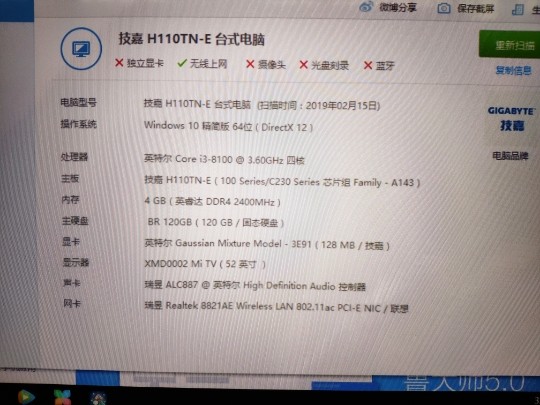

本款主板为全新技嘉H110TN-E，笔记本双内存插槽DDR4，支持msata固态+wifi无线,支持LVDS以及HDMI+DP接口，支持4K高清，有PCIe扩展 接口，支持显卡或者其他PCIe扩展卡，USB3.0等，如果要支持i3-8100，提前说明，会帮您刷好bios，没有说明默认支持i3-6100以及i3-7100等，不支持i3-8系列CPU。

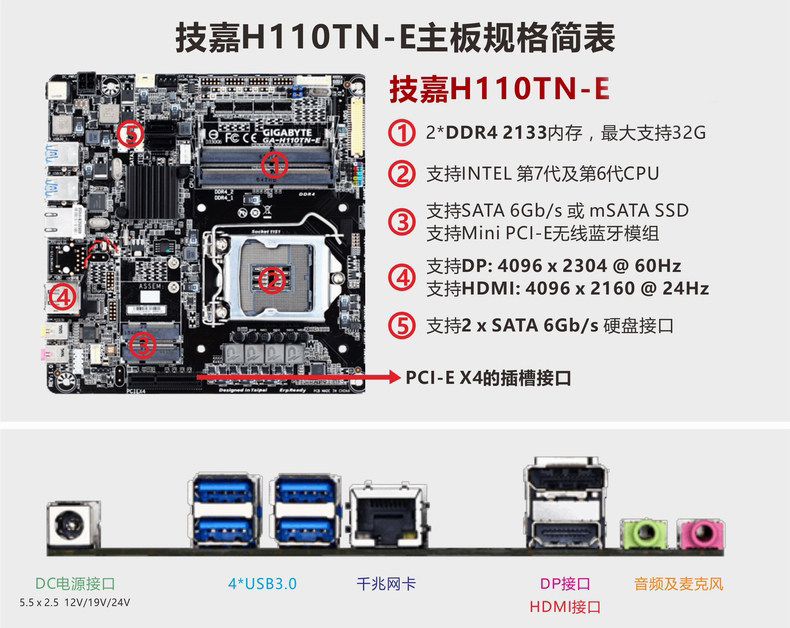

     技嘉GA-H110TN-E是组建6代酷睿平台AIO主板，采用技嘉超耐久技术，配备新式LGA 1151处理器插座，支持英特尔Skylake第六代智能酷睿处理器，透过内建的Intel HD Graphics系列绘图核心，同时提供多元影音输出接口DisplayPort、HDMI，可支持4K超高分辨率，相比Full HD提供4倍分辨率，画面呈现更细致，还内置杜邦2.0规范LVDS接口，用于连接液晶面板组建AIO一体机;还有两个2133MHz DDR4-SO DIMM内存插槽，支持双通道，最大可扩展至32GB容量。存储包括4个USB2.0扩展插针、双SATA3.0(6Gbps)和mSATA，扩展方面包括PCI-Express3.0(X4)、mini PCI-Express(兼用mSATA)和半尺寸mini PCI-Express。尾部I/O扩展包括4个USB3.0，HDMI、DisplayPort和千兆网LAN。简单点说，就是支持DDR4 2133MHz笔记本内存，可装mSATA SSD固态硬盘与WIFI/蓝牙模块。





如果要wifi无线加40元一套。

如果要超薄1u镶铜风扇加35元。

默认标配矮挡板，如果要全高挡板加15元即可。

如果要12V6A电源加50元。

如果要12V10A电源加60元。（稳定支持i5/i7）











  • Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
  • Mini-PCIe Dual Purpose Slot for mSATA SSD Support
  • LVDS Header for System Integrated Flat Panel Display Support
  • Rear Panel DisplayPort, HDMI 1.4 Ports for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Intel® GbE LAN for WOL and PXE Support
  • Features 4 USB 3.0 and 4 USB 2.0 Ports
  • GIGABYTE UEFI DualBIOS™ Technology
  • Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design



CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® H110 Express Chipset
Memory
  1. 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2133 MHz memory modules

(Please refer "Memory Support List" for more information.)
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support

  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.

Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
LAN
  1. 1 x Intel® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x4 slot
    (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
  2. 1 x full size Mini PCIe slot (MSATA_MPCIE2)
    * The MSATA_MPCIE2 slot can also be used as an MSATA connector.
  3. 1 x half size Mini PCIe slot (MPCIE1)
    (The Mini PCIe slot conforms to PCI Express 2.0 standard.)
Storage Interface

Chipset:

  1. 2 x SATA 6Gb/s connectors
  2. 1 x MSATA connector (MSATA_MPCIE2)
USB

Chipset:

  1. 4 x USB 3.0/2.0 ports on the back panel
  2. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 4-pin ATX 12V power connector
  2. 1 x CPU fan header
  3. 1 x system fan header
  4. 2 x SATA 6Gb/s connectors
  5. 1 x MSATA connector (MSATA_MPCIE2)
  6. �0�0�0�01 x SATA power connector
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x battery cable header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x digital microphone header
  12. 1 x LVDS header
  13. 1 x LVDS drive voltage jumper
  14. 1 x flat panel display header
  15. 1 x flat panel display power jumper
  16. 1 x flat panel display switch header
  17. 1 x backlight switch header
  18. 1 x speaker header
  19. 1 x buzzer header
  20. 1 x Clear CMOS jumper
  21. 1 x chassis intrusion header

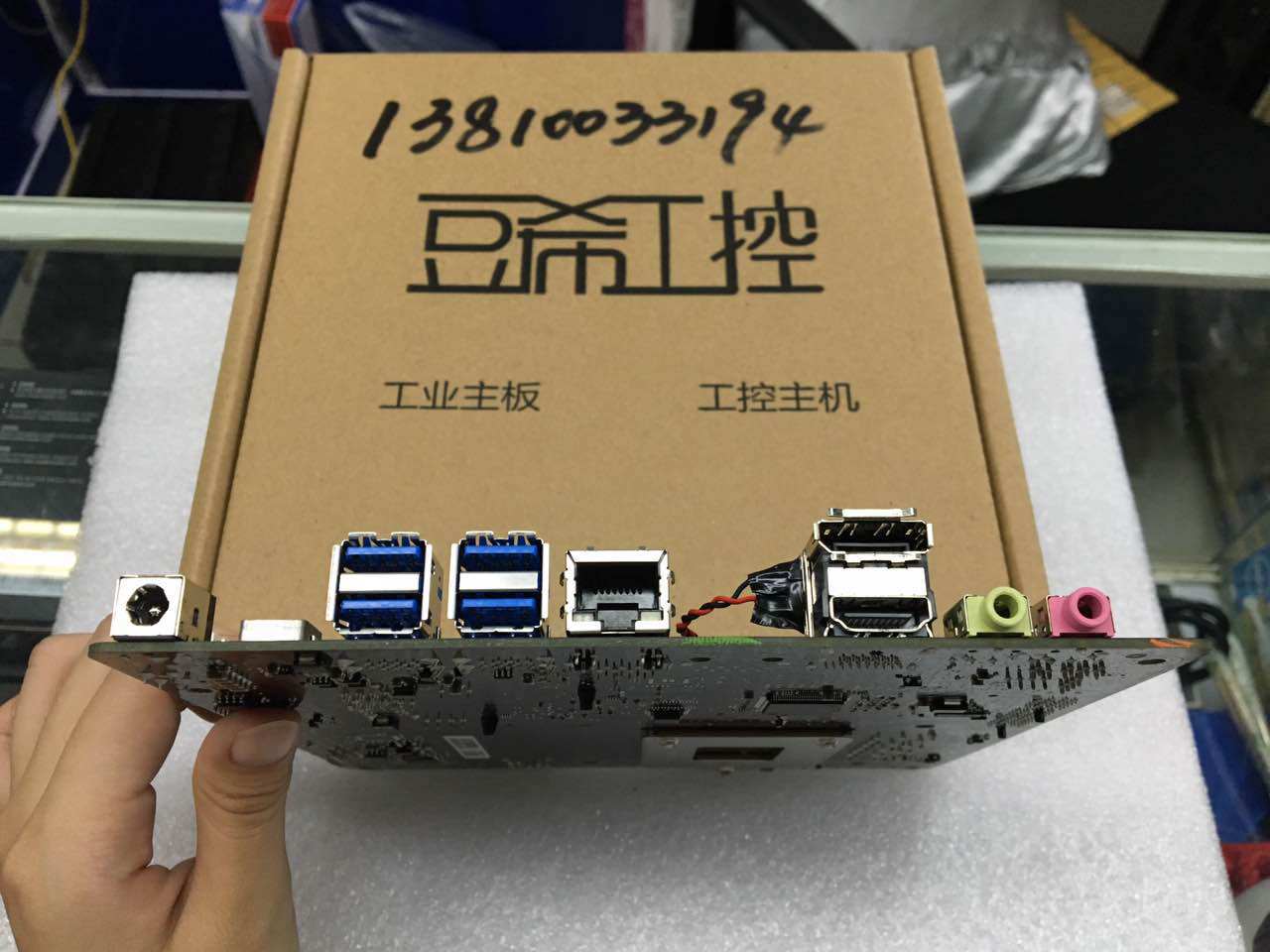

Back Panel Connectors
  1. 1 x DC In power connector
  2. 1 x HDMI port
  3. 1 x DisplayPort
  4. 4 x USB 3.0/2.0 ports
  5. 1 x RJ-45 port
  6. 2 x audio jacks (Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan fail warning
  4. CPU/System fan speed detection
  5. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
  2. Support for Q-Flash
Bundle Software
  1. Norton® Internet Security (OEM version)
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. Thin Mini-ITX Form Factor; 17.0cm x 17.0cm

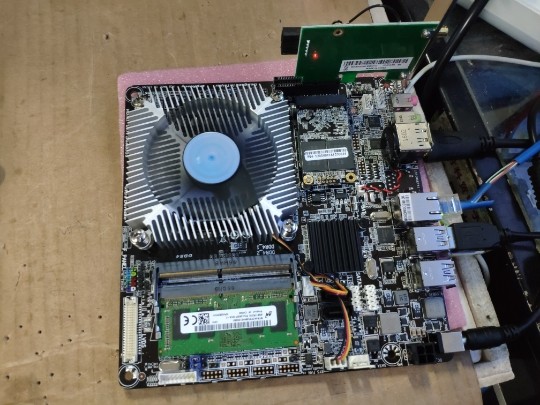

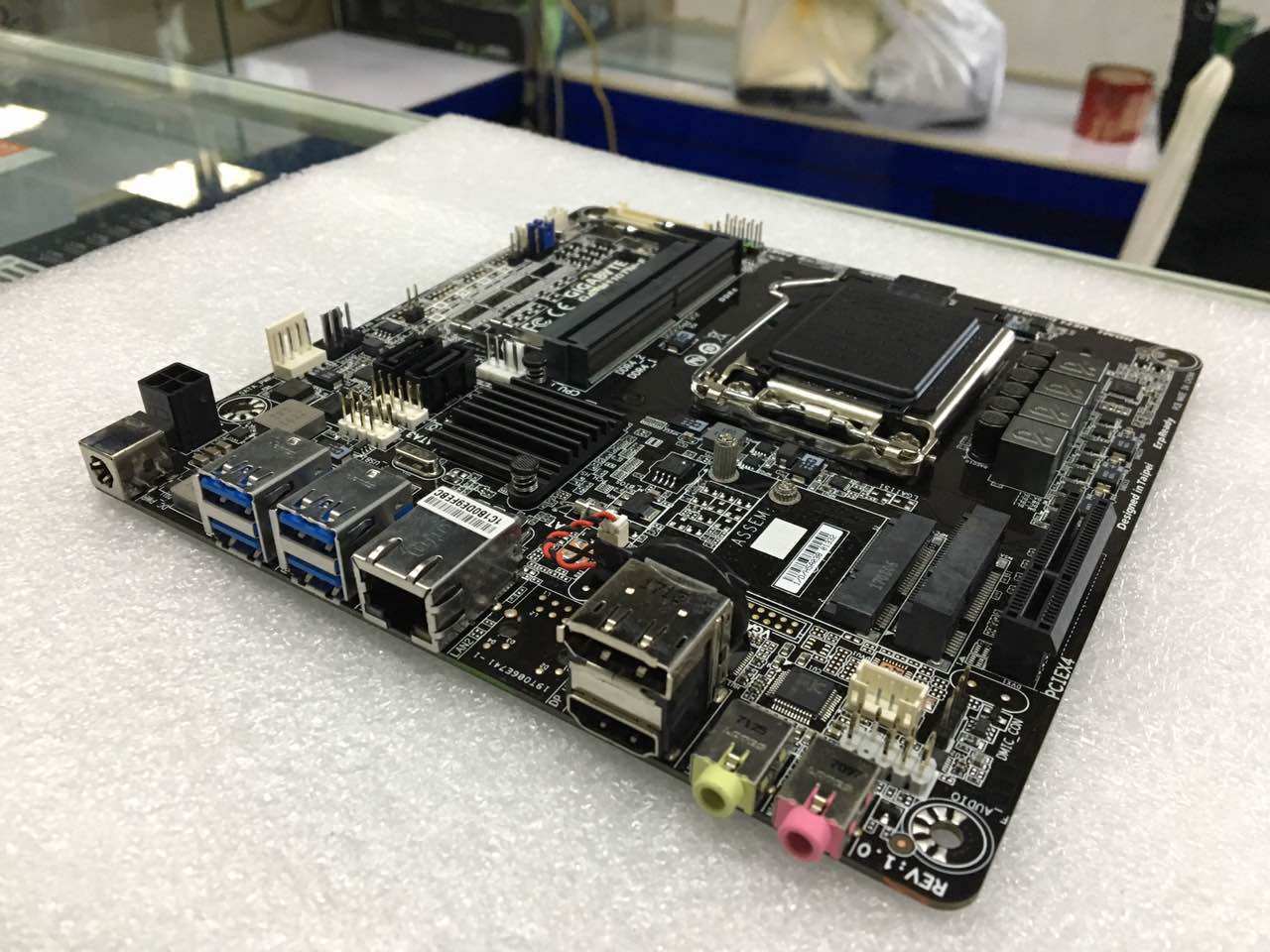

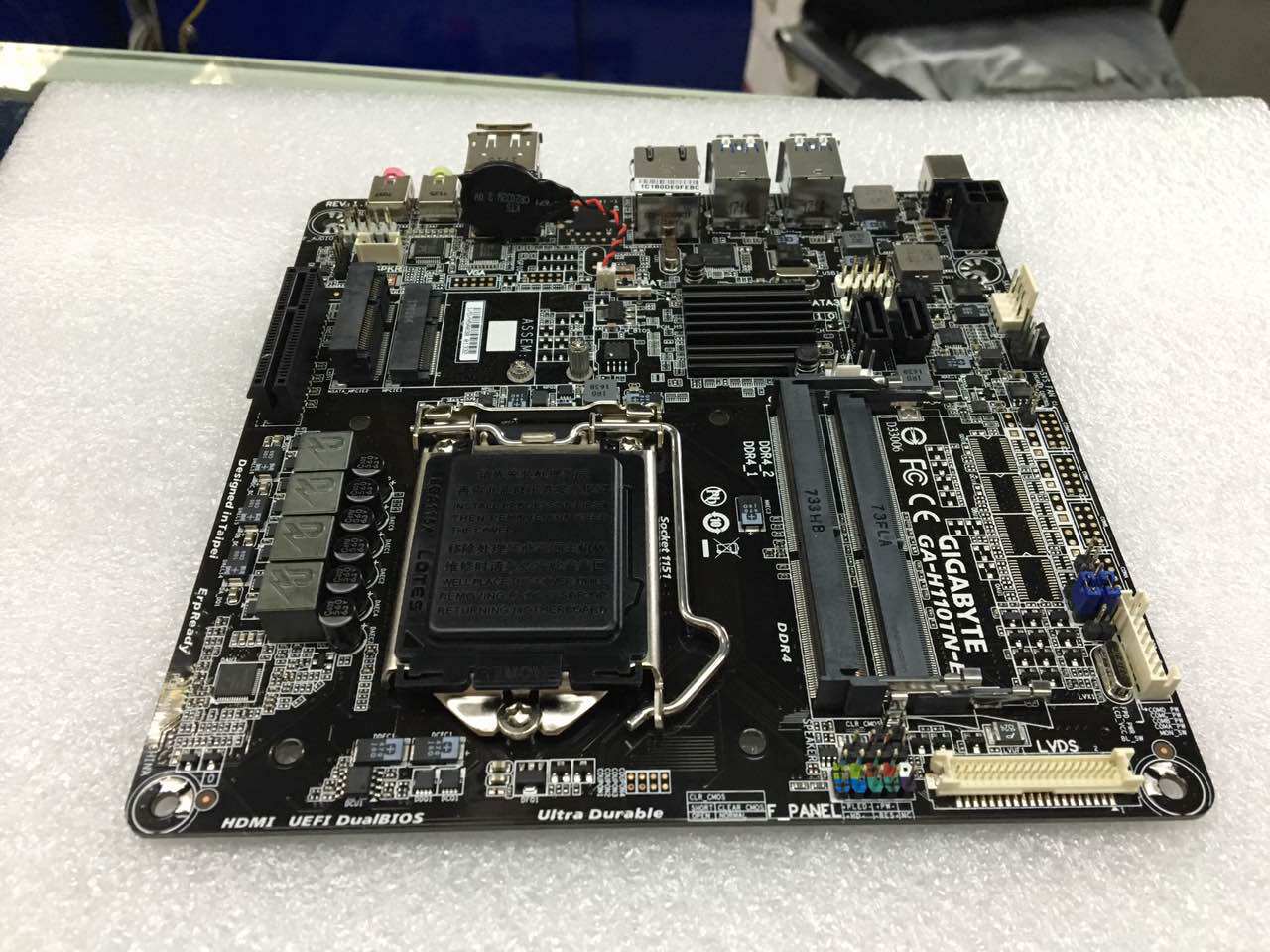

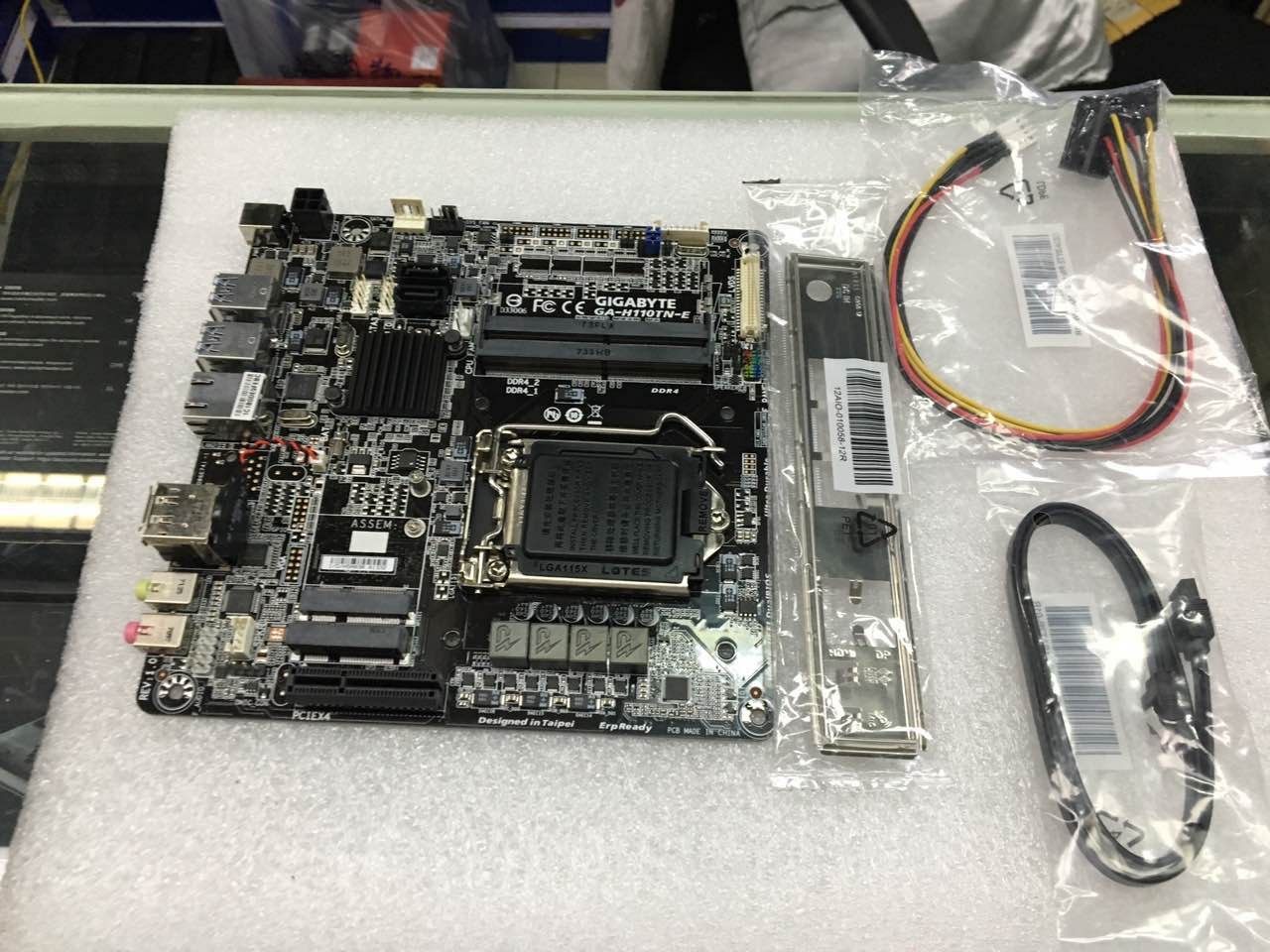

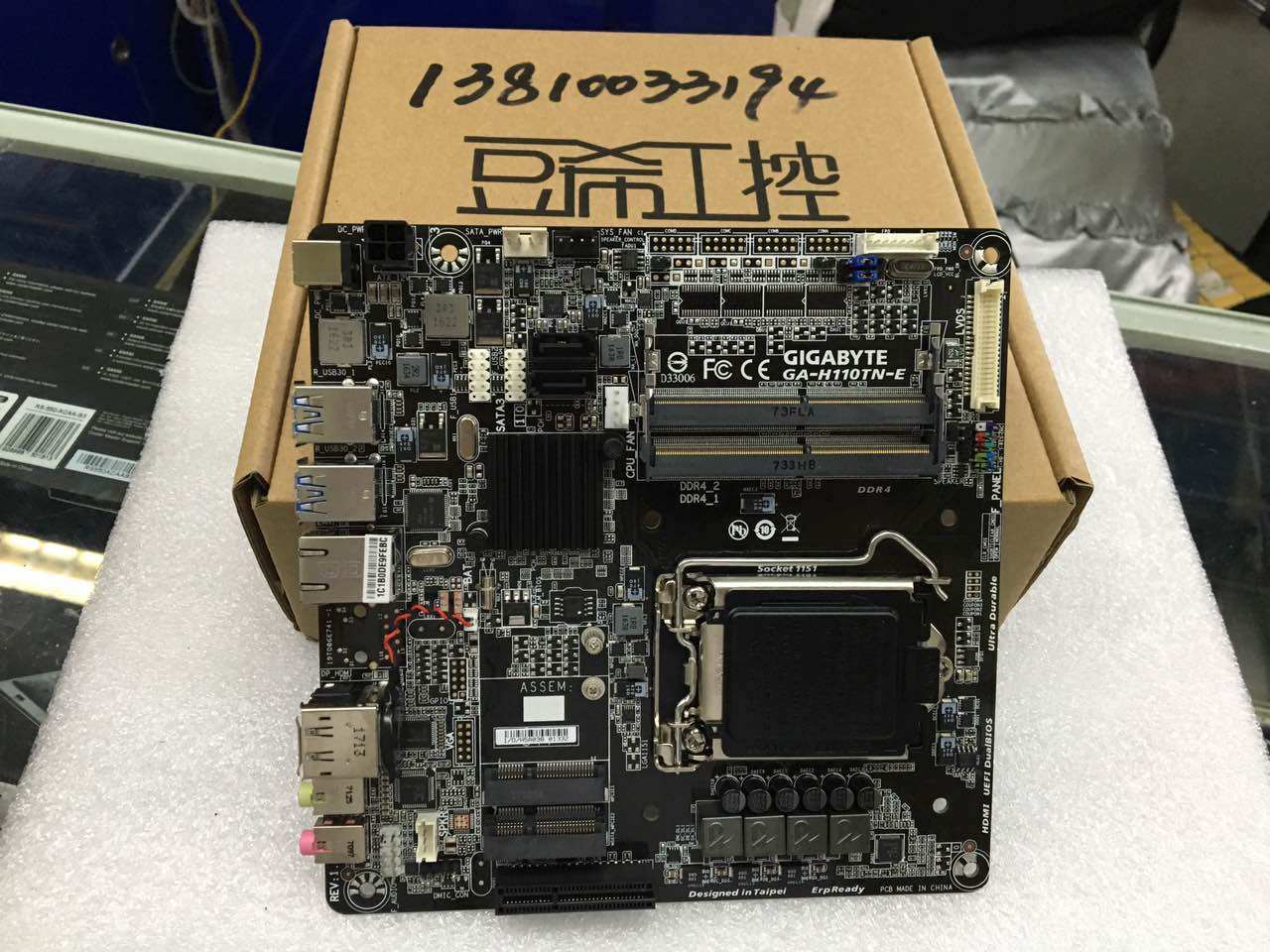

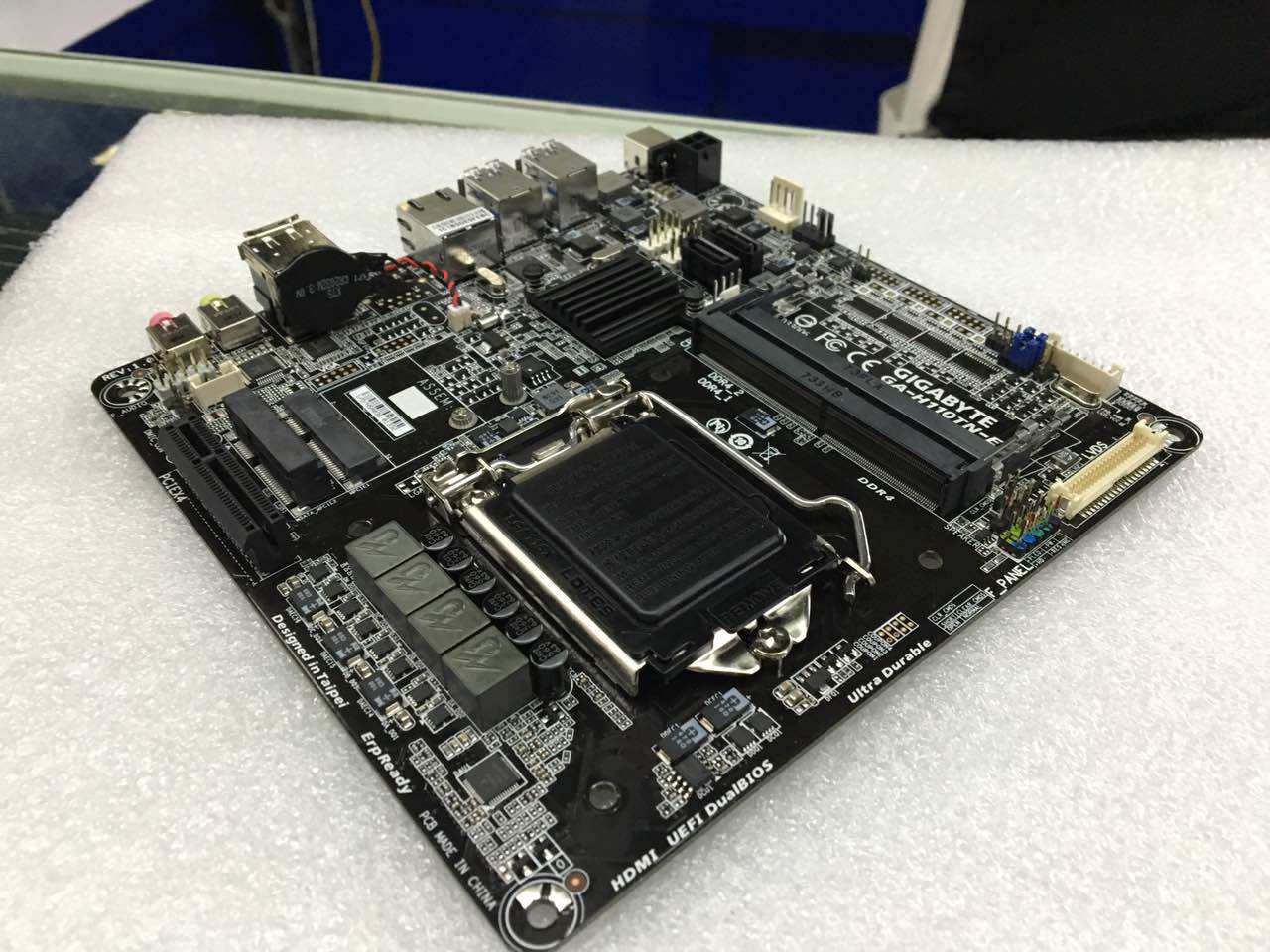

实物图：
